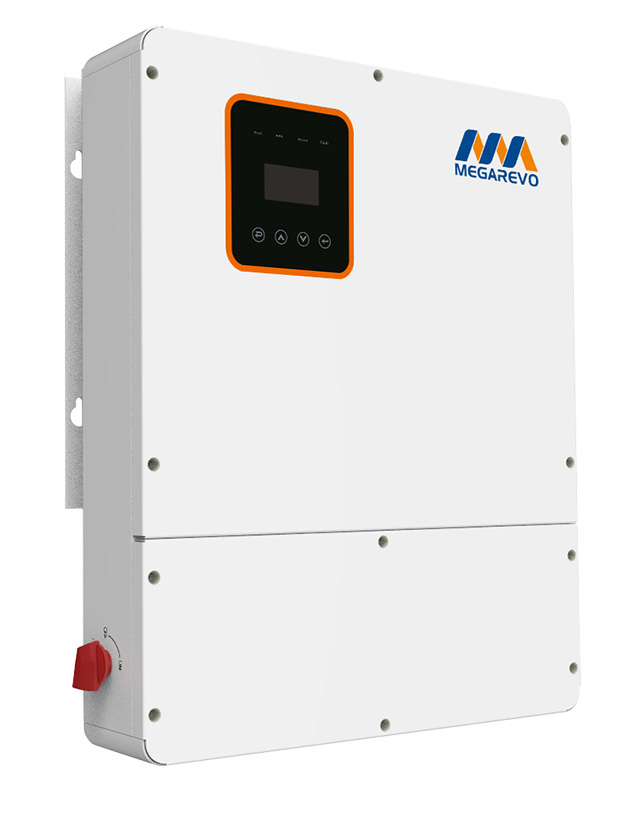

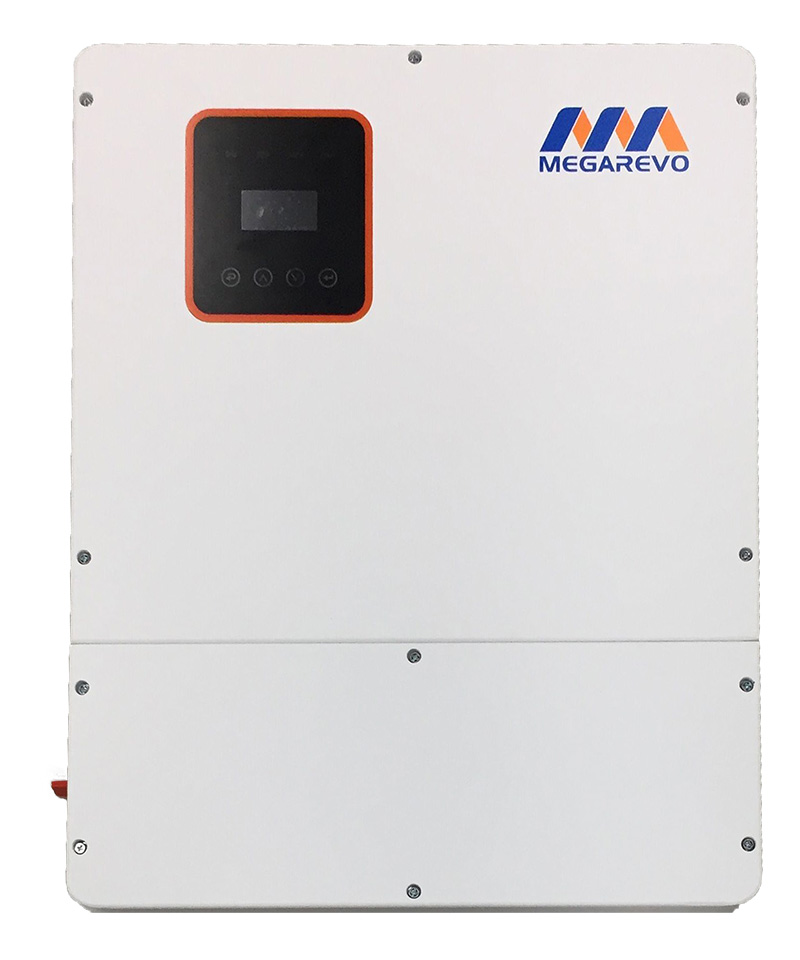

RKH1NA Series Single-Phase Hybrid Inverter

  • RKH1NA Series Single-Phase Hybrid Inverter
  • RKH1NA Series Single-Phase Hybrid Inverter
Inquiry
Features
  • 7.6kW to 11.4kW range
  • A variety of lithium batteries and lead-acid batteries can be connected with the hybrid inverter.
  • Quick and easy wiring
  • IP65 design, natural cooling, low noise due to no external fan design
  • Battery reverse polarity protection, the charge and discharge controlled by intelligent software greatly improve the battery life.
  • Input and output lightning protection
  • Arc fault detection in PV inverter
  • Discharge at full power and disconnect the charger automatically when the battery has been fully charged.
  • Off Grid full power output
  • Allows for transient overload operation under greater than 1.5 times the rated power of the inverter
  • Soft starter, with air conditioning, water pump and other loads.
  • Insulation detection, battery leakage detection, ground fault detection, anti-islanding protection to prevent electric shock.
  • Maximum efficiency up to 98.2%
  • With 4 independent MPPT (maximum power point tracker) design, the light energy in different directions can be fully utilized.
  • Distributed virtual power station management system
  • Remote monitoring controlled by computers and mobile phones
Application Examples
  • Villa
  • Communications base station
  • Nomadic area
  • Farm
  • Household
  • Back-up power

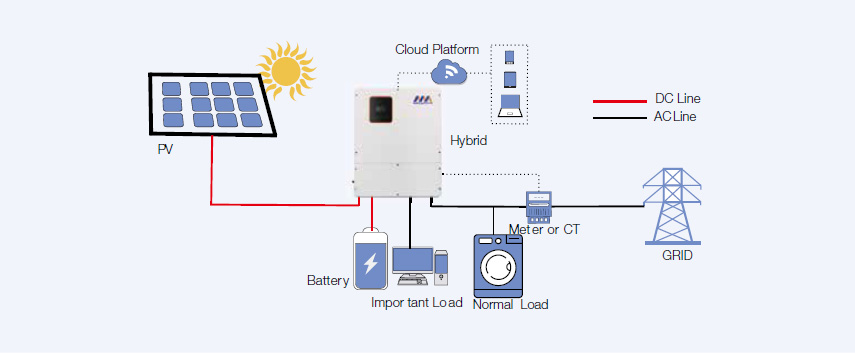

How it works?
RKH1NA Series Single-Phase Hybrid Inverter
Technical Parameters
Model R7K6H1NA R9KH1NA R10KH1NA R11K4H1NA
PV Input
PV Input Power 10kW 11.7kw 13kw 14.82KW
MPPT Number 4
PV Voltage Range 150 - 500V
Max PV Input Voltage 500V
Each MPPT Input Current 13A 13A 14A 14A
AC Output (On Grid)
Rated AC Output 120/240V 7.6KW 120/240V 9KW 120/240V 10KW 120/240V 11.4W
AC Output Voltage 110-120/220-240V split phase, 1Ø, 230 1 phase
AC Output Frequency 50/60Hz (45 to 54.9Hz / 55 to 65Hz)
Max Output Current 32A RMS 37.5A 41.7A 47.5A
AC Reverse Charging Yes
Power Factor 0.8leading…0.8lagging
THDI < 2%
Backup AC Output
Rated Backup Output Power 7.6W 9KW 10KW 11.4KW
Max. Backup Output power 9.5KVA 60S/
11.4KVA 1S		 11.25KVA 60S/
13.5KVA 1S		 12.5KVA 60S/
15KVA 1S		 14.25KVA 60S/
17.1KVA 1S
Backup AC Output voltage 110-120/220-240 split phase, 1Ø, 230 1 phase
AC Frequency 50/60Hz
Output THDI < 2%
Battery
Max. Charge & Discharge current 80 A / 80 A 62.5A/62.5A 69.5A/69.5A 79A/79A
Battery Voltage Range 96V~336V 150V~336V 150V~336V 150V~336V
Battery Capacity Range 6.6 to 66 kWh
Battery type Lithium/Lead-acid
Efficiency
Max efficiency ≥98.2%
CEC efficiency ≥97.2%
Protection
Complete Protection Ground protection; Pull arc protection; Anti-islanding protection; DC disconnect detection; Battery reverse protection; Battery charge and discharge protection; Insulation testing; GFCI; DC&AC anti-thunder; Overvoltage and under-voltage protections; AC&DC over-current protection; AC short-circuit current protection; Overheating protection
General Data
AC and Backup Output Conduit Size 25.4 mm
PV Input Conduit Size 25.4 mm
Battery Input Conduit size 34.5mm
Operation Temperature Range -25 ~ +60°C
Environment Humidity 0-95%
Altitude 0~4000M（Derating when over 2000m）
IP Grade IP65
Weight 30kg
Dimension (W x H x D) 530x 660 x 200mm
Cooling Natural cooling
Noise Emission(dB) < 25dB < 29dB < 29dB < 29dB
Display LCD
Communication Modbus, RS485, WIFI, 4G
Self-Consumption at Night < 2.5 W (with battery enabling < 5 W)
No Transformer YES
Safety UL1741SA all options, UL1699B, CSA 22.2
EMC FCC Part 15 Class B
