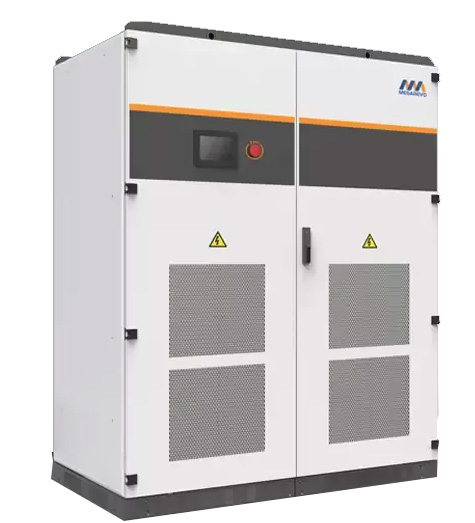

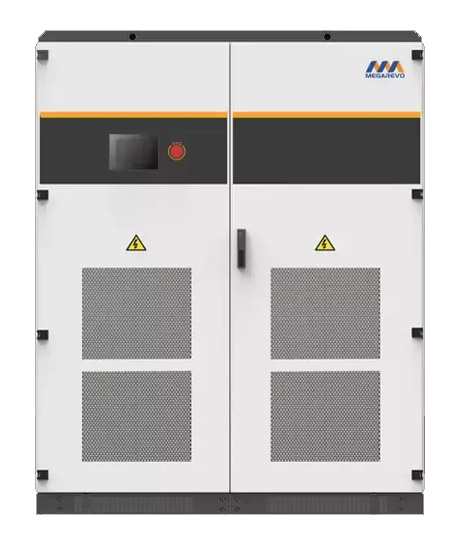

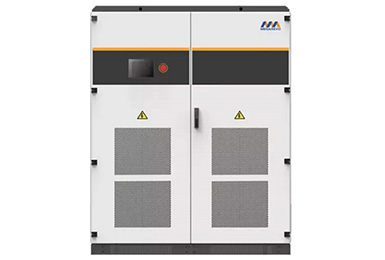

MEGA-T Power Conversion System (with Transformer)

  • MEGA-T Power Conversion System (with Transformer)
  • MEGA-T Power Conversion System (with Transformer)
Inquiry
Features
  • Compatible with most kinds of batteries
  • Wide battery voltage range
  • Supports on-grid charge/discharge and off-grid independent inversion
  • Adjustable reactive power and active power
  • Features black start
  • Supports multiple inverters in parallel
  • Flexible communications mode, real-time BMS instructions received
  • Small size makes it convenient for installation, operation and maintenance
  • Maximum efficiency up to 98.7%
  • A fan with low power consumption works with an intelligent temperature control system
  • Using high performance DSP makes sure the conversion system works stably and efficiently
  • The detection algorithm controlled by our patented software ensures that the conversion system fault can be found in time, and the system running status can be easily displayed
  • AC/DC double power supply backup provides continuous powering to the control system.
Application Examples
  • Industrial and Commercial
  • Microgrid system
  • Solar storage
    and EV charge
  • Echelon utilization

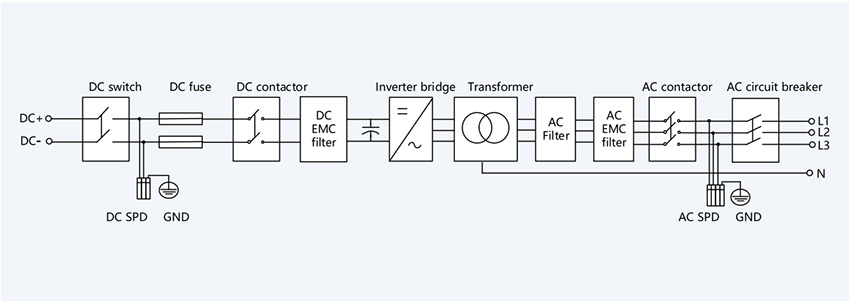

How it works?
MEGA-T Power Conversion System (with Transformer)
Technical Parameters
Datasheet MEGA0030T MEGA0050T MEGA0100T MEGA0150T MEGA0250T MEGA0500T
DC(battery)
Voltage range 200V-850V 200V-850V 200V-850V 420V-850V 420V-850V 500V-850V
Max current 172A 285A 566A 404A 673A 1128A
AC(on-grid)
Max output power 33kVA 55kVA 110kVA 165kVA 275kVA 550kVA
Rated power 30KW 50KW 100KW 150KW 250KW 500KW
Rated voltage 400V 400V 400V 400V 400V 400V
Voltage range 320V-460V 320V-460V 320V-460V 320V-460V 320V-460V 320V-460V
Rated current 44A 72A 144A 217 361A 722A
Max output current 48A 80A 160A 240A 400A 800A
Rated frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Frequency range 45-55/55-65Hz 45-55/55-65Hz 45-55/55-65Hz 45-55/55-65Hz 45-55/55-65Hz 45-55/55-65Hz
THDI < 3% < 3% < 3% < 3% < 3% < 3%
PF 1lagging-1leading 1lagging-1leading 1lagging-1leading 1lagging-1leading 1lagging-1leading 1lagging-1leading
AC connection 3W+N+PE 3W+N+PE 3W+N+PE 3W+N+PE 3W+N+PE 3W+N+PE
AC(off-grid)
Rated voltage 400V 400V 400V 400V 400V 400V
THDU ＜1% linear ＜5% non-linear ＜1% linear ＜5% non-linear ＜1% linear ＜5% non-linear ＜1% linear ＜5% non-linear ＜1% linear ＜5% non-linear ＜1% linear ＜5% non-linear
Rated frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Overload capability 110%-continuous 110%-continuous 110%-continuous 110%-continuous 110%-continuous 110%-continuous
General Information
Maximum efficiency 96.00% 96.5% 97.1% 97.20% 97.3% 97.5%
Protection degree IP21 IP21 IP21 IP21 IP21 IP21
Noise emission < 65dB < 65dB < 65dB < 65dB < 65dB < 65dB
Operation Temperature －30～+55℃ －30～+55℃ －30～+55℃ －30～+55℃ －30～+55℃ －30～+55℃
Cooling Forced air Forced air Forced air Forced air Forced air Forced air
Relative humidity 0-95% non-condensing 0-95% non-condensing 0-95% non-condensing 0-95% non-condensing 0-95% non-condensing 0-95% non-condensing
Maximum altitude 5000m(derating ＞ 3000m) 5000m(derating ＞ 3000m) 5000m(derating ＞ 3000m) 5000m(derating ＞ 3000m) 5000m(derating ＞ 3000m) 5000m(derating ＞ 3000m)
Dimension(W×D×H) 800×800×2050mm 800×800×2050mm 800×800×2050mm 800×800×2050mm 1200×800×2050mm 1600×1050×2050mm
Weight 300kg 450kg 860kg 1000kg 1350kg 2770kg
Transformer yes yes yes yes yes yes
Self-Consumption < 10W < 10W < 10W < 10W < 10W < 10W
On/Off grid transfer Manual(default)Automatic(optional) Manual(default)Automatic(optional) Manual(default)Automatic(optional) Manual(default)Automatic(optional) Manual(default)Automatic(optional) Manual(default)Automatic(optional)
Communication
Display Touch screen Touch screen Touch screen Touch screen Touch screen Touch screen
BMS Interface RS485/CAN RS485/CAN RS485/CAN RS485/CAN RS485/CAN RS485/CAN
Device Interface RS485, TCP/IP RS485, TCP/IP RS485, TCP/IP RS485，TCP/IP RS485，TCP/IP RS485，TCP/IP
Certificates CE, TUV CE, TUV CE, TUV CE、TUV CE、TUV CE、TUV
