Villa
Communications base station
Communication room
Mobile charging station
Farm

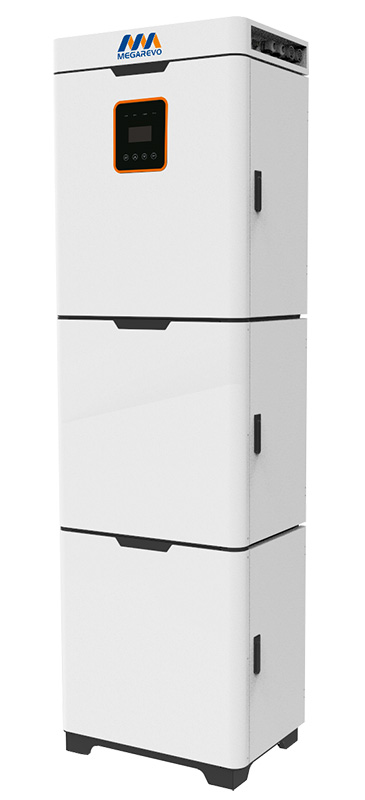

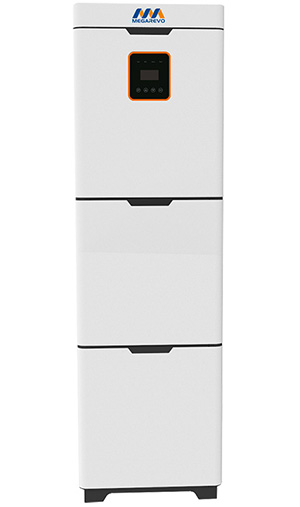

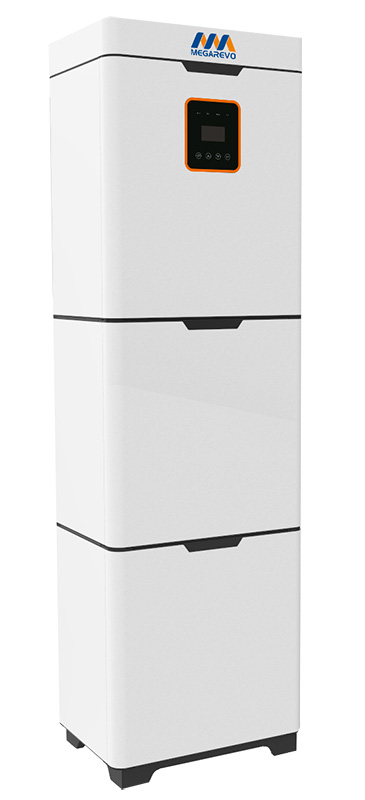

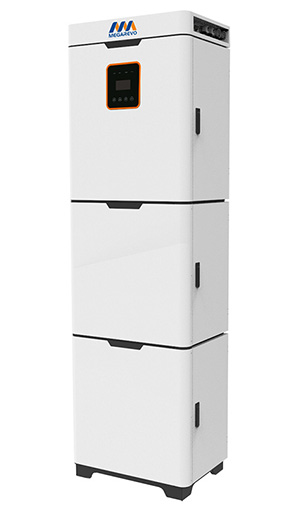

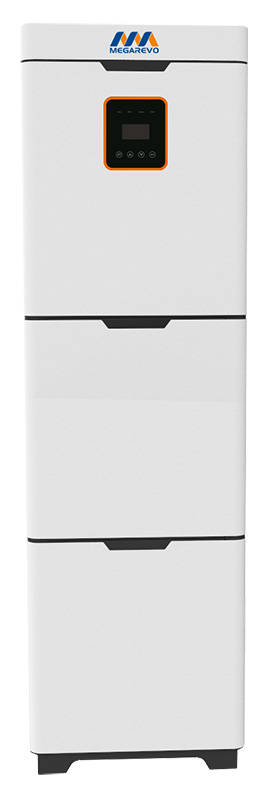

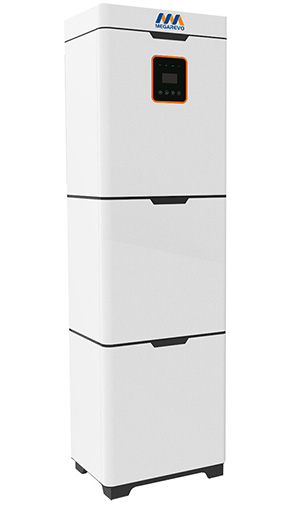

| Model | R5KL1-A |
| AC Output | 5000W |
| Max. Input Power | 6600W |
| System Energy | 3kWh~16.2kWh (90%DOD) |
| Battery Type | Lithium iron phosphate |
| Protection Class | IP21 |
| Warranty | 5 years |
| Parameters | |
| Model | R5KL1-M |
| Max. Input Current | 2*14A |
| Max. PV Voltage | 550V |
| MPPT Tracker/Strings | 2/1 |
| MPPT Range | 125~550V |
| Charge/Discharge Current | 110A |
| Charge/Discharge Power | 5000W |
| Phase | Single-phase |
| Rated Output Voltage | 230V |
| Grid Voltage Range | 180~270V |
| Rated Output Frequency | 50Hz/60Hz |
| Backup Power Supply | EPS |
| Display | LED |
| Operating Temperature | -10°C~50°C |
| Relative Humidity | 15%~85% (non-condensing) |
| Dimensions (W/D/H) mm | 520/350/680mm |
| Weight | 40kg |
| Grid Connection Regulations | VDE 4105, VDE 0126, G59/3, CEI 0-21, AS 4777.2/3 |
| Safety Regulations | IEC 62109-1&-2, IEC 62477, CE-EMC |
| Battery Technical Parameters | |
| Battery Module | Customizable |
| Battery Capacity | 3~18kWh |
| Weight | 40kg |
| Dimensions (W/D/H) mm | 482*426*156mm |
| MAX. Parallel Batteries | 6 |
| Cycle Times | ≥8000 |
| Charge/Discharge Current | 30A (0.5C) |
