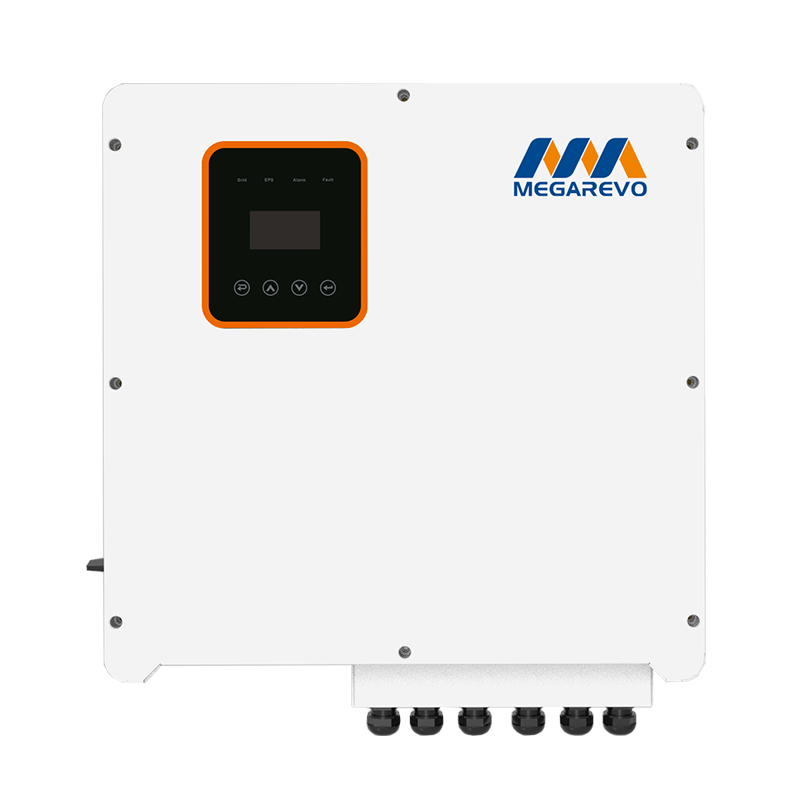

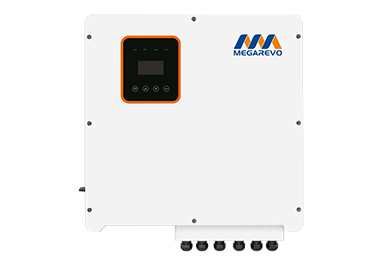

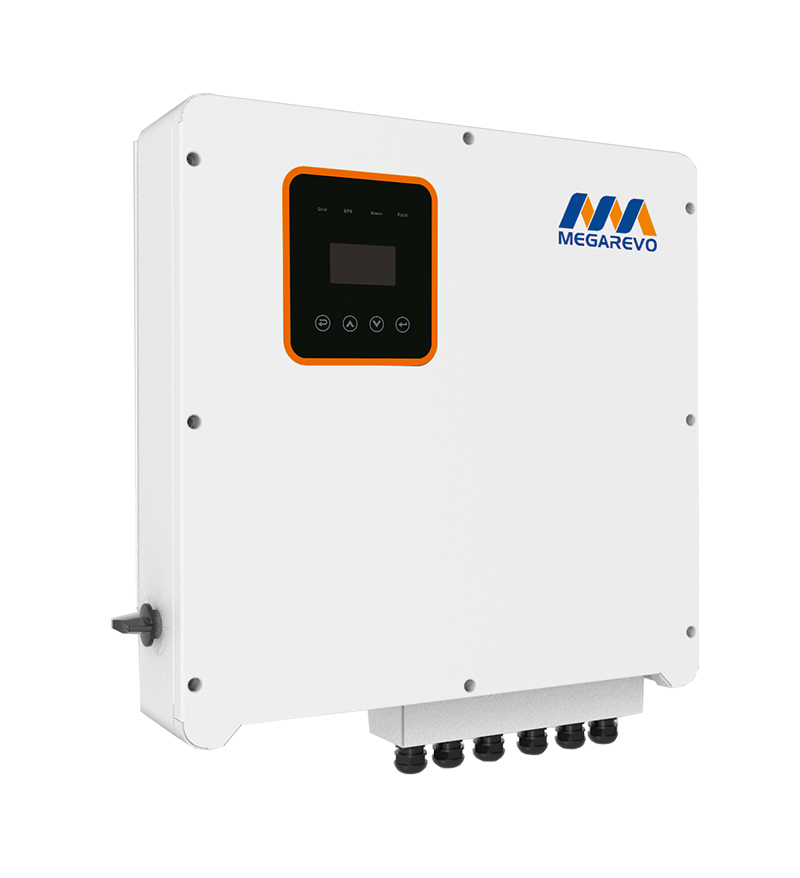

RKH3 Series Three-Phase Hybrid Inverter (7500W-24000W)

Features

Application Examples

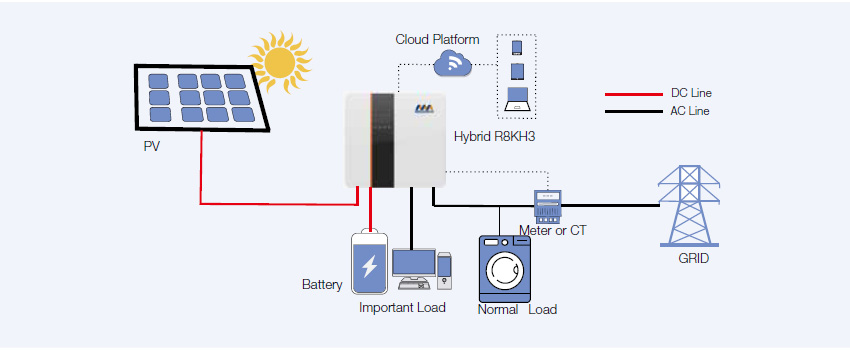

How it works?

Technical Parameters

Datasheet	R6KH3	R8KH3		R10KH3	R12KH3	R15KH3	R20KH3
DC Input
Max. Input Power	7500W	10000W		13000W	15000W	18000W	24000W
Start-up Voltage	125V
Max. PV Voltage	1000V
MPPT Range	160V-850V
Nominal	720V
Max. Input Current	13A
MPPT Tracker/Strings	2/1
AC Output
Rated Power W/VA	6000W		8000W	10000W	12000W	15000W	20000W
Max. Output Current	10A		13.3A	16.7A	20A	25A	33.3A
Nominal Voltage/Range	400V /360V~440V
Frequency	50 /60Hz
PF	1(0.8 lagging-0.8 leading)
THDI	< 3%
AC Output Topology	3W+N+PE
Battery
Battery Voltage Range	180V~550V
Max. Charging Voltage	550V
Charge/Discharge Current	15A		25A	25A	30A	50A	50A
Battery Type	lead-acid battery, lithium-ion battery
Communication Interface	CAN/RS485
EPS Output
Rated Power	6000VA~6000W		8000VA~8000W	10000VA~12000W	12000VA~12000W	15000VA~15000W	20000VA~20000W
Rated Voltage	400Vac
Rated Current	9A		12A	15A	18A	23A	30A
Rated Frequency	50Hz
Automatic Switchover Time	< 20ms
THDU	< 2%
Parallel Operation	Yes
General Data
Battery Charge/ Discharge	96.0%
DC Max. Efficiency	98.0%
Euro Efficiency	97.5%
MPPT Efficiency	99.5%
Protection Class	IP65
Noise Emission (Typical)	< 35dB
Operation Temperature	-25～+60℃
Cooling	Natural
Relative Humidity	0 ~95% （non-condensing）
Altitude	2000m
Dimensions (W/D/H) mm	550/200/515mm
Weight	36kg
Inverter Topology	Transformerless
Self-Consumption	< 3W
Features
Display	LCD
Interface：RS485/Wi-Fi/LAN /CAN/DRM	Yes /Opt/Opt /Yes/Yes
Certificates	CE, TUV
