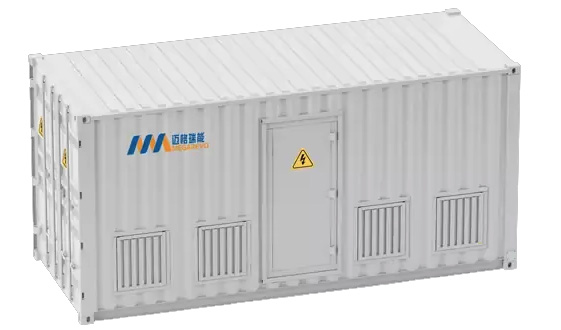

  4. Mega-MV Series Containerized Power Conversion System

Mega-MV Series Containerized Power Conversion System

  • Mega-MV Series Containerized Power Conversion System
Inquiry
Features
  • Modular design allows for easy expansion and maintenance
  • Specially designed duct ensures good heat dissipation
  • Three-level topology with new IGBT module provides high efficiency conversion
  • Supports multiple battery input, effectively improving battery cycle life
  • High frequency switches, low current ripples and high voltage quality
  • Supports parallel system, can be extended to MW level
  • Built-in EMS function to reduce customer investment costs
Application Examples
  • PV power station
  • Wind power station
  • Frequency regulation
  • Grid energy storage
Technical Parameters
Model MEGA1000-MV35 MEGA1260-MV35 MEGA2000-MV35 MEGA2500-MV35
DC (Battery)
Voltage Range 500V-850V
Max. Current 1860A 2400A 3720A 4800A
AC
Max. Apparent Power 1100KVA 1386KVA 2200KVA 2750KVA
Rated Power 1000KW 1260KW 2000KW 2500KW
Rated Voltage 35KV
Voltage Range 38.5±2×2.5%KV (10KV, 6KV optional)
Rated Current 16.5A 20.8A 33A 41.2A
Max. Output Current 18.1A 22.9A 36.3A 45.4A
Rated Frequency 50/60Hz
Frequency Range 45-55/55-65Hz
THDI < 3%
PF 1lagging-1leading
AC Connection 3W+PE
General Information
Maximum Efficiency 98%
Protection Degree IP54
Noise Emission < 65dB
Operation Temperature －30～+55℃
Cooling Forced air
Relative Humidity 0-95% non-condensing
Maximum Altitude 5000m (derated above 3000m)
Dimension (W/D/H) 4300×2438×2591mm 4300×2438×2591mm 6058×2438×2591mm 6058×2438×2591mm
Weight 9000kg 12000kg
Transformer Yes
Communication
Display Touch screen
BMS Interface RS485/CAN
Local Communication RS485, TCP/IP
Certificates CGC, TUV
