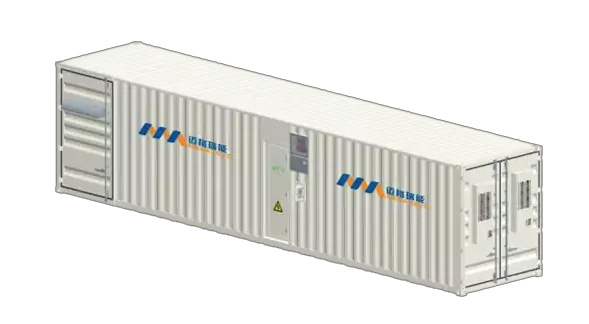

Batt Series Battery Energy Storage System (BESS)

  • Batt Series Battery Energy Storage System (BESS)
Inquiry
Features
  • Large capacity lithium iron phosphate battery with high discharge rate and long service life
  • Ground fault protection function
  • Adopts advanced automatic fire extinguishing system
  • Temperature and humidity monitoring and access control function
  • The energy storage system has high modularity, simple structure, making it easy to transport, install and maintain
  • The battery energy storage system adopts advanced heat management mode and realizes intelligent control through industrial air conditioner to ensure uniform temperature in containers.
Application Examples
  • PV power station
  • Wind power station
  • Frequency regulation
  • Grid energy storage
Technical Parameters
Model BATT1045A BATT2611A
Container Battery Capacity 1.045MWH 2.61MWH
Voltage Range 600V-876V
Dimensions (W×D×H) 6058 ×2438×2896mm 12192 ×2438×2896mm
Protection Degree IP54
Relative Humidity 0 ~95% non-condensing
Operation Temperature －30℃～+55℃
Communication Protocol CAN, RS485, TCP/IP
Battery Cluster
Battery Pack Name 240S2P
Battery Type LiFePO4
Rated Voltage 768V
Operating Voltage Range 600V-876V
Core Capacity 340Ah
Capacity 261KWh
Working Temperature Range Charging: 0℃~45℃
Discharging: -20°C ~ 60°C
Dimensions (W×D×H) 1738× 576× 2550mm
