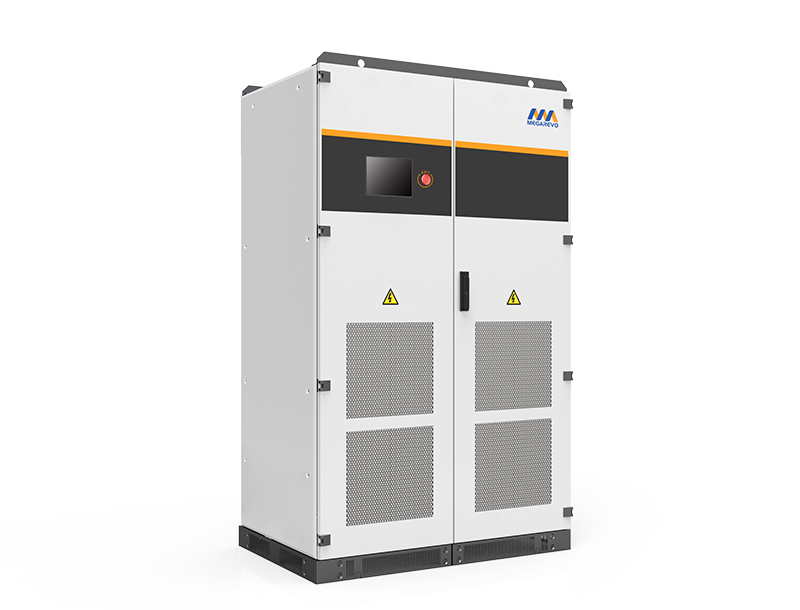

MEGA Series Power Conversion System (without Transformer)

Features

Compatible with most kinds of batteries
Wide battery voltage range
Support on-grid charge/discharge and off-grid independent inversion
Reactive power and active power can be adjusted
Supports black start
Multiple inverters connected in parallel
Flexible communications mode, real-time BMS instructions received
The power conversion system works stably and efficiently because of high performance DSP
User-friendly HMI allows for easy operation and maintenance
Small size design realizes convenient transportation, installation, and maintenance

Application Examples

Technical Parameters

Model	MEGA0500	MEGA0630
DC (Battery)
Battery voltage range	500V-850V
Max. Current	1128A	1404A
AC (On-Grid)
Max. Output Power	550kVA	693kVA
Rated Power	500KW	630KW
Rated Voltage	400V (315V、360V,Optional)
Voltage Range	320V-460V
Rated Current	722A	909A
Max. Output Current	800A	1000A
Rated Frequency	50/60Hz
Frequency Range	45-55/55-65Hz
THDI	< 3%
PF	1lagging-1leading
AC Connection	3W+PE
AC (off-Grid)
Rated Voltage	400V
THDU	＜1% linear ＜5% non-linear
Rated Frequency	50/60Hz
Overload Capability	110%-continuous
General Information
Maximum Efficiency	98.70%
Protection Degree	IP21
Noise Emission	< 65dB
Operation Temperature	－30～+55℃
Cooling	Forced air
Relative Humidity	0-95% non-condensing
Maximum Altitude	5000m(derated above 3000m)
Dimension(W×D×H)	1200X800X2050mm
Weight	1000kg	1100kg
Transformer	No
Self-Consumption	< 10W
On/Off Grid Transfer	Manual(default) Automatic(optional)
Communication
Display	Touch screen LCD
BMS Interface	RS485/CAN
Device Interface	RS485, TCP/IP
Certificates	CE, CGC, TUV
