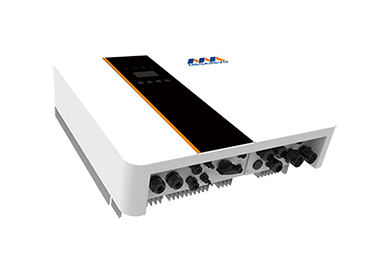

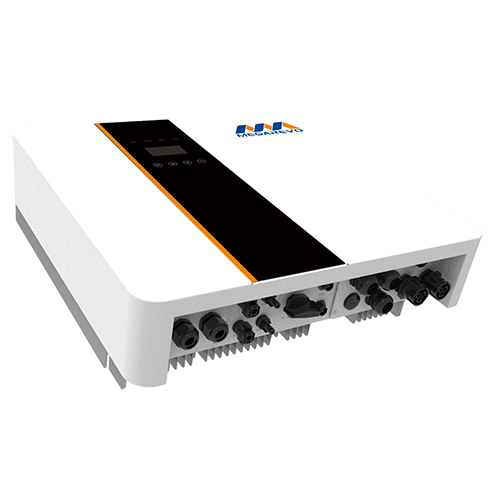

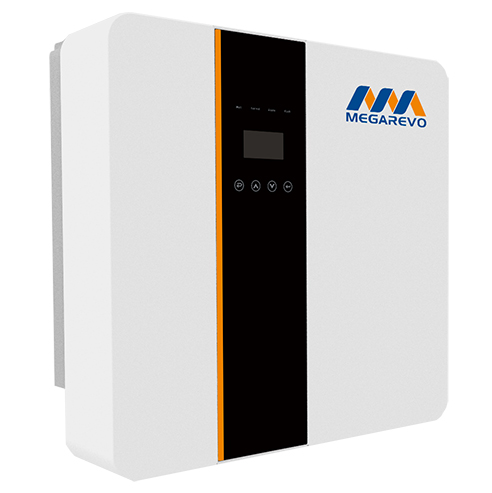

RKL1 Series Single-Phase Hybrid Inverter (Low Voltage)

  • RKL1 Series Single-Phase Hybrid Inverter (Low Voltage)
  • RKL1 Series Single-Phase Hybrid Inverter (Low Voltage)
Inquiry
Features
  • Wide input voltage range
  • Compatible with lead-acid batteries, lithium-ion batteries and others
  • Light weight, smart operation
  • Natural cooling, low noise
  • IP65 protection level
  • Space saving due to wall mounted design
  • LCD touch screen display
  • Built-in anti-backflow function.
  • Battery reverse polarity protection
  • Smart home energy management system
  • Power dispatching and demand side response management
  • Distributed virtual power station management
Application Examples
  • Villa
  • Communications base station
  • Nomadic area, Farm
  • Farm
  • Household
  • Back-up power

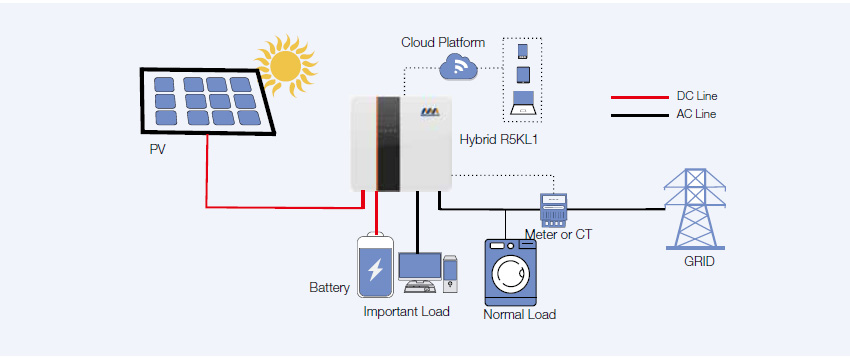

How it works?
RKL1 Series Single-Phase Hybrid Inverter (Low Voltage)
Technical Parameters
Datasheet R3KL1 R3K6L1 R4KL1 R4K6L1 R5KL1 R6KL1
DC Input
Max. Input Power 4600W 6000W 7000W
Start-up Voltage 125V
Max. PV Voltage 500V
PV Voltage Range 125V-500V
MPPT Range/Nominal 125V-500V /360V
Max. Input Current 14A/14A
MPPT Tracker/Strings 2/1
AC Output
Rated Power W/VA 3000VA/3000W 3600VA/3600W 4000VA/4000W 4600VA/4600W 5000VA/5000W 6000VA/6000W
Max. Output Current 13A 16A 17.4A 20A 21.7A 26A
Nominal Voltage/Range 230Vac /176Vac~270Vac
Frequency 50 /60Hz
PF 1(0.8lagging-0.8leading)
THDI < 3%
AC Output Topology L+N+PE
Battery
Battery Voltage Range 42~59V
Max. Charging Voltage 58V
Charge/Discharge Current 95A/62.2A 95A/76.6A 95A/83.3A 95A/95.8A 95A/110A 95A/110A
Battery Type Lithium /Lead-acid
Communication Interface CAN/RS485
EPS Output
Rated Power W/VA 3000VA/3000W 3600VA/3600W 4000VA/4000W 4600VA/4600W 5000VA/5000W 6000VA/6000W
Rated Voltage 230Vac
Rated Current 13A 16A 17.4A 20A 21.7A 26A
Rated Frequency 50Hz
Automatic Switchover Time < 20ms
THDU < 2%
Parallel Operation Yes
General Data
Battery Charge/Discharge 95%
DC Max. Efficiency 97.6%
Euro Efficiency 97%
MPPT Efficiency 99.9%
Protection Class IP65
Noise Emission (Typical) < 35dB
Operation Temperature -25～+60℃
Cooling Natural
Relative Humidity 0 ~95% （non-condensing）
Altitude 2000m
Dimensions (W/D/H) mm 550/200/515mm
Weight 25kg
Inverter Topology transformerless
Self-Consumption < 3W
Features
Display LCD
Interface: RS485/Wi-Fi/LAN
/CAN/DRM 		Yes /Opt/Opt
/Yes/Yes
Certificates CE, TUV
