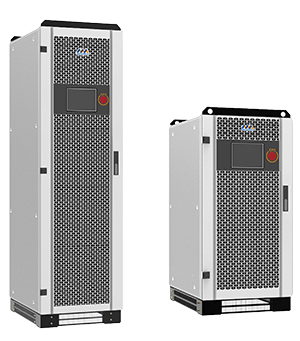

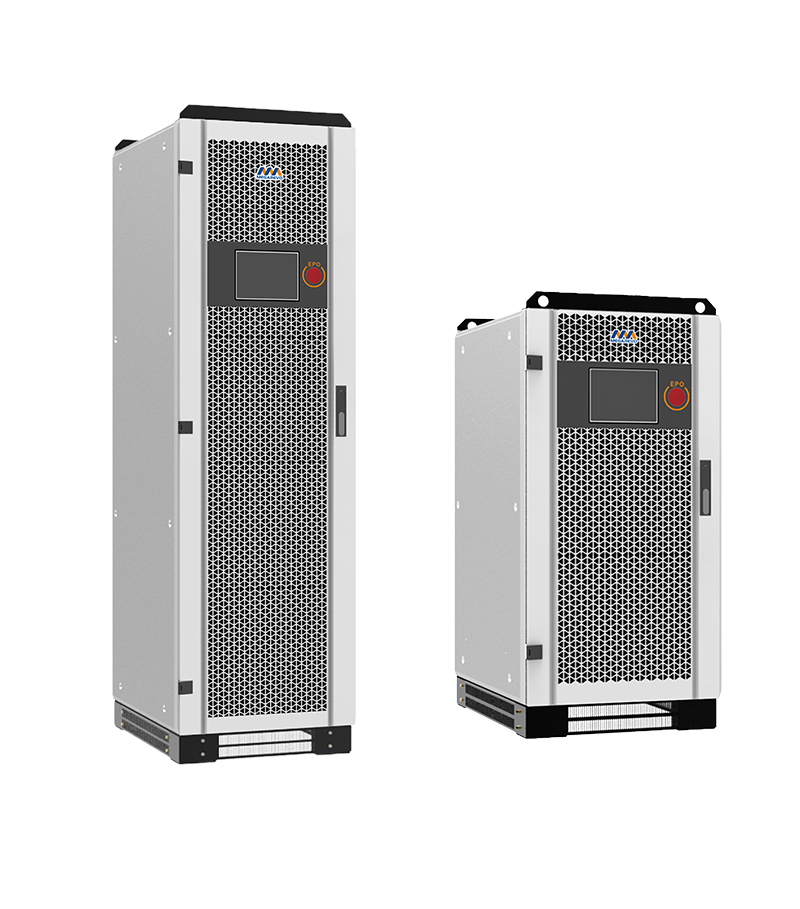

MPS Series Central Inverter

  • MPS Series Central Inverter
Inquiry
Features
  • Various working modes can be set flexibly
  • Compatible with a wide range of battery types(lithium-ion, lead-acid)
  • PV controller can be expanded to achieve different photovoltaic capacities
  • Integrated design supports simultaneous connection of loads, batteries, power grids, diesel generator and PV array together
  • Integrated EMS function ensures high power supply security and stability, achieving maximum utilization of new energy
  • Intelligent control of battery capacity and discharge time
  • CAN and RS485 communication interface, modbus protocol
  • Simple switch between on and off grid mode
  • Strong load adaptability
  • Various protection functions to protect inverters and batteries
Application Examples
  • Off Grid Mines
  • Off Grid Island
  • Villages without electricity
  • Off Grid Farm

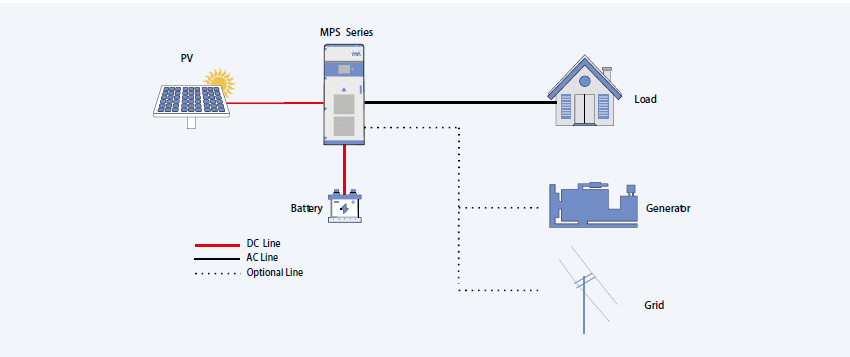

How it works?
MPS Series Central Inverter
Technical Parameters
Datasheet MPS0030 MPS0050 MPS0100 MPS0150 MPS0250 MPS0500
AC (Grid-connected)
Apparent Power 33kVA 55kVA 110kVA 165kVA 275KVA 550KVA
Rated Power 30kW 50kW 100kW 150kW 250kW 500kW
Rated Voltage 400V 400V 400V 400V 400V 400V
Rated Current 44A 72A 144A 217A 361A 722A
Voltage Range 320V-460V 320V-460V 320V-460V 320V-460V 320V-460V 320V-460V
Rated Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Frequency Range 45-55/55-65Hz 45-55/55-65Hz 45-55/55-65Hz 45-55/55-65Hz 45-55/55-65Hz 45-55/55-65Hz
THDI < 3% < 3% < 3% < 3% < 3% < 3%
PF 0.8lagging-0.8leading 0.8lagging-0.8leading 0.8lagging-0.8leading 0.8lagging-0.8leading 0.8lagging-0.8leading 0.8lagging-0.8leading
AC Connection 3/N/PE 3/N/PE 3/N/PE 3/N/PE 3/N/PE 3/N/PE
Transformer Yes Yes Yes Yes Yes Yes
AC (Off-Grid)
Apparent Power 33kVA 55kVA 110kVA 165kVA 275KVA 550KVA
Rated Power 30kW 50kW 100kW 150kW 250kW 500kW
Rated Voltage 400V 400V 400V 400V 400V 400V
Rated Current 43A 72A 144A 217A 361A 722A
THDU ≤2% linear ≤2% linear ≤2% linear ≤2% linear ≤2% linear ≤2% linear
Rated Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Overload Capability 110%-10min
120%-1min 		110%-10min
120%-1min 		110%-10min
120%-1min 		110%-10min
120%-1min 		110%-10min
120%-1min 		110%-10min
120%-1min
PV
Max. PV Open-circuit Voltage 1000VDC 1000VDC 1000VDC 1000VDC 1000VDC 1000VDC
MAX. PV Power 36kW 60kW 120kW 150kW 250kWp 500kWp
PV MPP Voltage Range 200VDC-850VDC 200VDC-850VDC 200VDC-850VDC 200VDC-850VDC 200VDC-850VDC 200VDC-850VDC
Battery
Rated Voltage 150V-850V 150V-850V 320V-850V 420VDC-850VDC 420VDC-850VDC 420VDC-850VDC
Max Charging Power 30KW 50KW 100KW 150KW 250kWp 500kWp
General Data
Dimension (W/D/H) 800/800/2050mm 800/800/2050mm 1200/800/2050mm 1200/800/2050mm 1800/800/2050mm 2800/800/2050mm
Weight 440kg 620kg 900kg 1250kg 1700kg 3250kg
Environmental Temperature -25℃ to +55℃ -25℃ to +55℃ -25℃ to +55℃ -25℃ to +55℃ -25℃ to +55℃ -25℃ to +55℃
Relative Humidity 0-95%non-condensing 0-95%non-condensing 0-95%non-condensing 0-95%non-condensing 0-95%non-condensing 0-95%non-condensing
Protection Degree IP20 IP20 IP20 IP20 IP20 IP20
Noise Emission 65dB(A)@1m 65dB(A)@1m 65dB(A)@1m 65dB(A)@1m 65dB(A)@1m 65dB(A)@1m
Maximum Altitude 5000m(derate over 3000m) 5000m(derate over 3000m) 5000m(derate over 3000m) 5000m(derate over 3000m) 5000m(derate over 3000m) 5000m(derate over 3000m)
Standby Consumption < 30W < 30W < 30W < 30W < 30W < 30W
Cooling Forced-air Forced-air Forced-air Forced-air Forced-air Forced-air
Communication
Display Touch screen Touch screen Touch screen Touch screen Touch screen Touch screen
Communication Interface RS485/CAN RS485/CAN RS485/CAN RS485/CAN RS485/CAN RS485/CAN
