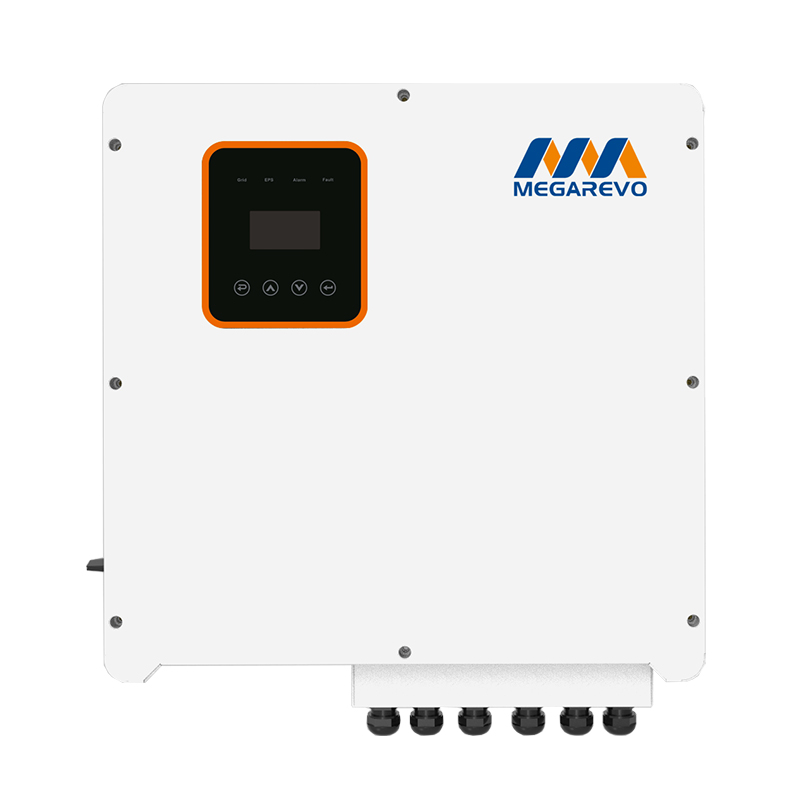

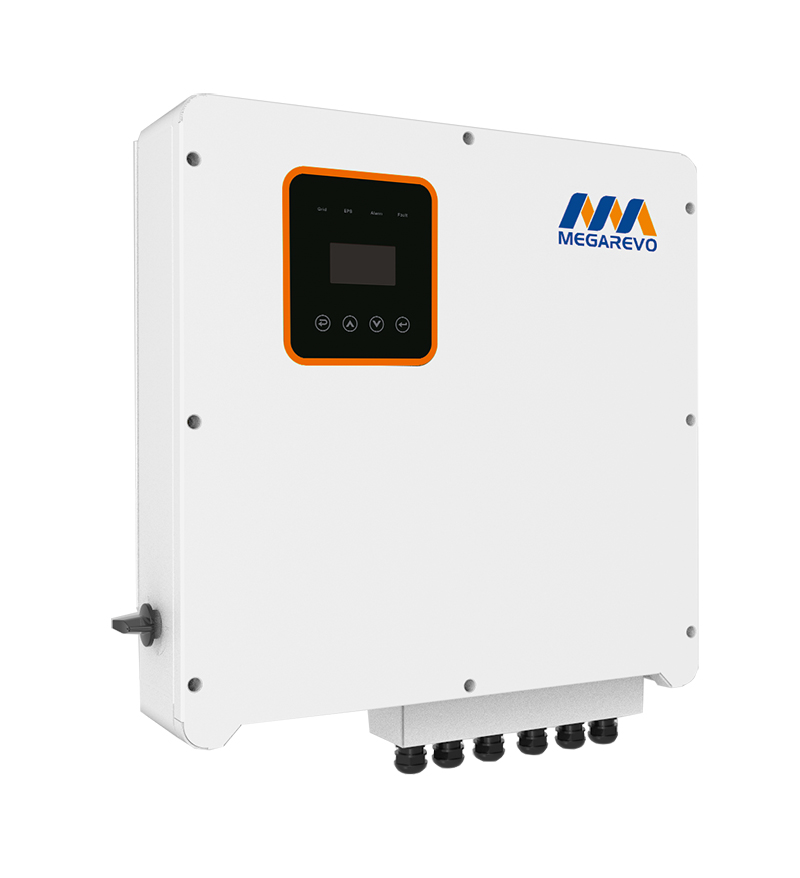

RKH1 Series Single-Phase Hybrid Inverter (4600W-7000W)

  • RKH1 Series Single-Phase Hybrid Inverter (4600W-7000W)
  • RKH1 Series Single-Phase Hybrid Inverter (4600W-7000W)
Inquiry
Features
  • Wide input voltage range
  • Compatible with lead-acid batteries, lithium-ion batteries and others
  • Light weight, smart operation
  • Natural cooling, low noise
  • IP65 protection level
  • Space saving due to wall mounted design
  • LCD touch screen display
  • Built-in anti-backflow function
  • Battery reverse polarity protection
  • Smart home energy management system
  • Power dispatching and demand side response management
  • Distributed virtual power station management
Application Examples
  • Villa
  • Communications base station
  • Nomadic area, Farm
  • Farm
  • Household
  • Back-up power

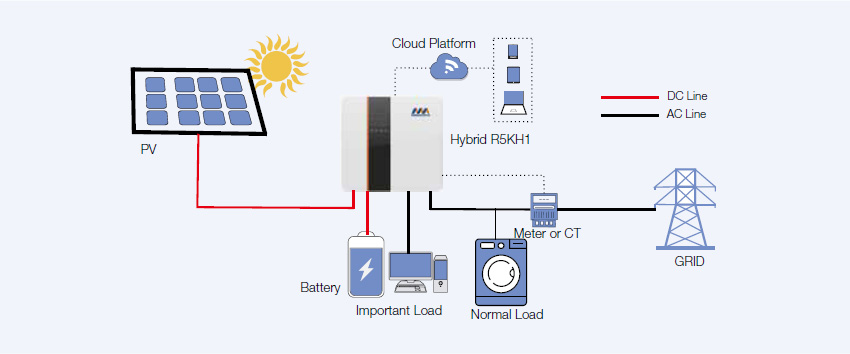

How it works?
RKH1 Series Single-Phase Hybrid Inverter (4600W-7000W)
Technical Parameters
Datasheet R5KH1 R6KH1 R7K6H1 R9KH1 R10KH1 R11K4H1
DC Input
Max. Input Power 6.5KW 8.5KW 10KW 11.7KW 13KW 14.82KW
Start-up Voltage 150V
Max. PV Voltage 550V
MPPT Range/Nominal 125V-550V /360V
Max. Input Current 14A
MPPT Tracker/Strings 2/1 4/1
AC Output
Rated Power 5KVA 6KVA 7.6KVA 9KVA 10KVA 11.4KVA
Max. Output Current 21.7A 26A 33A 39.2A 43.5A 49.5A
Nominal Voltage/Range 230V /176Vac~270Vac
Frequency 50 /60Hz
PF 1(0.8lagging-0.8leading)
THDI < 3%
AC Output Topology L+N+PE
Battery
Battery Voltage Range 96V~336V 96V~336V 96V~336V 150V~336V 150V~336V 150V~336V
Capacity Of Battery 6.6~66 kWh
Charge/Discharge Current 80A / 80A 80A / 80A 80A / 80A 62.5A/62.5A 69.5A/69.5A 79A/79A
Battery Type 　 lithium /Lead-acid
Communication Interface 　 CAN/RS485
EPS Output
Rated Power W/VA 5KVA 6KVA 7.6KVA 9KVA 10KVA 11.4KVA
Max. Output Power 6.25kVA 60s. 7.5kVA 1S 7.5kVA 60s. 9kVA 1S 9.5kVA 60S. 11.4KVA 1S 11.25kVA 60S. 13.5KVA 1S. 12.5kVA 60S. 15KVA 1S 14.25kVA 60S. 17.1KVA 1S
Rated Voltage 230Vac
Rated Current 21.7A 26A 33A 39.2A 43.5A 49.5A
Rated Frequency 50 /60Hz
Automatic Switchover Time < 20ms
THDU < 2%
General Data
Battery Charge/Discharge 96.5%/96%
DC Max. Efficiency 98.20%
Euro Efficiency 97.20%
MPPT Efficiency 99.00%
Protection class IP65
Noise Emission (Typical) < 35dB
Operation Temperature -25～+60℃
Cooling Natural
Relative Humidity 0 ~95% (non-condensing)
Altitude 2000m
Dimensions (W/D/H) mm 550X200X515mm 530X200X660mm
Weight 26kg 32kg
Inverter Topology Without transformer
Self-Consumption < 3W
Features
Display LCD
Interface: RS485/Wifi yes /opt/opt/yes/yes
Certificates CE, TUV
